Description

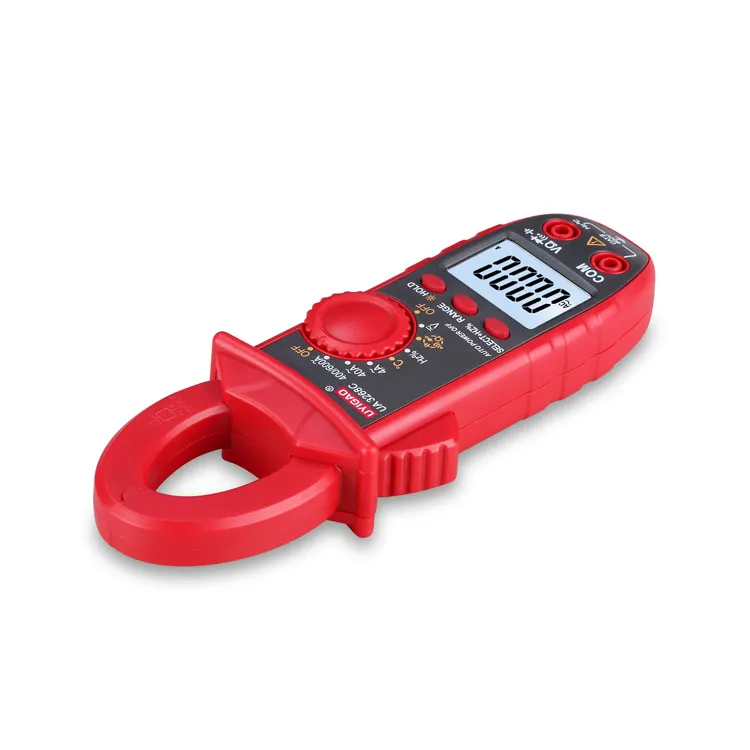

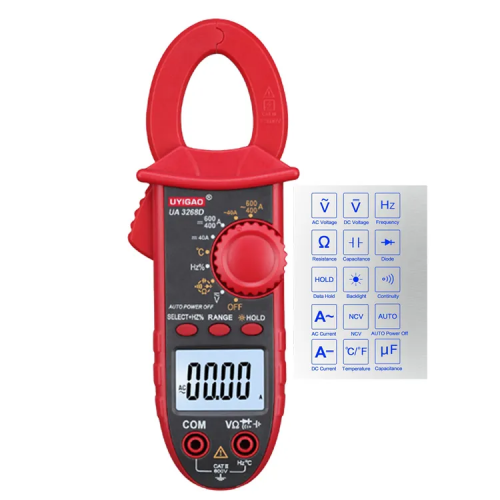

- UA3268D clamp meter, it is a kind of stable performance, safe and reliable communication instrument
- Full range of overload protection circuit, the unique design make it become the superior performance of special electrical and instrument
- Ideal tool for smelting, manufacturing, petroleum, electric power, chemical and other industries

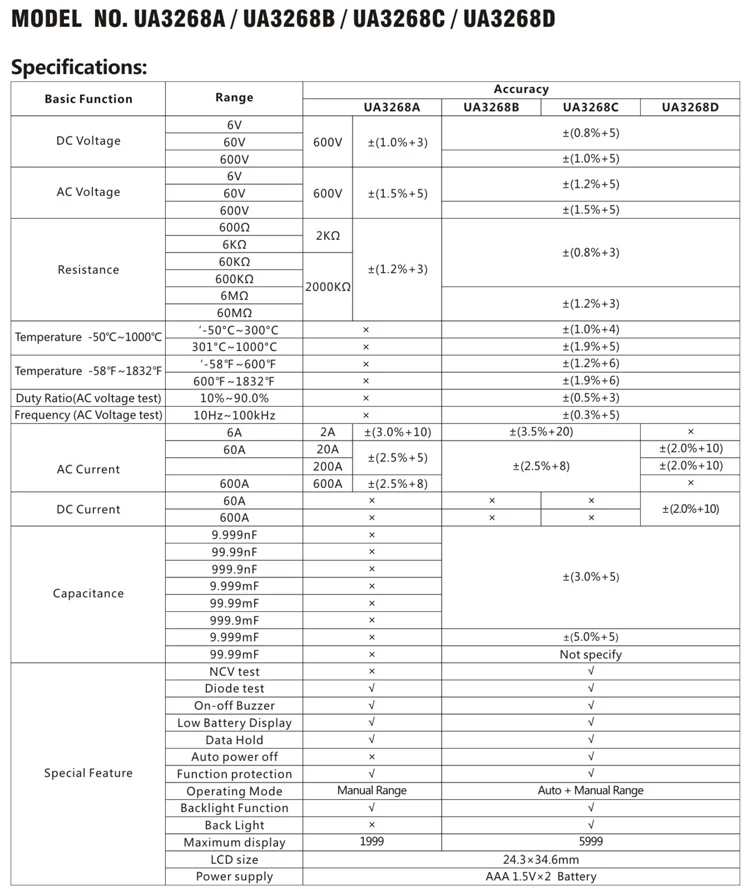

| Basic features | Range | Accuracy |
| DC voltage | 6V/60V 600V |
±(0.8%+5) ±(1.0%+5) |
| AC voltage | 6V/60V 600V |
±(1.2%+5) ±(1.5%+5) |
| DC current | 60A/600A | ±(2.5%+10) |
| AC current | 60A/600A | ±(2.5%+8) |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ 6MΩ/60MΩ |
± (0.8%+3) ± (1.2%+3) |
| Capacitance | 9.999nF/99.99nF/999.9nF 9.999uF/99.99uF/999.9uF 9.999mF 99.99mF |
±(3.0%+5) ±(3.0%+5) ±(5%+5) No specify |
| Frequency (AC voltage test) | 10-100kHz | ±(0.3%+5) |
| Duty ratio(AC voltage test | 10-90% | ±(0.5%+3) |
| Temperature |
-50 to 300ºC, | ±(1.0%+4) |
| 301 to 1000 ºC | ±(1.9%+5) | |
| Special function | ||
| NCV test | × | |
| Diode test | √ | |
| On-off buzzer | √ | — |
| Low battery display | √ | — |
| Data hold | √ | — |
| Auto power off | √ | — |
| Function protection | √ | — |
| Operating Mode | Auto + manual range | — |
| Backlight | √ | — |
| Display | 5999 | — |
| LCD size | 24.3x34.6mm | — |
| Clamp opening size | 28mm | |
| Features description | ||
| Product weight | 160g | |
| Product size | 185 * 25*51 | |
| Body color | Steel gray and red | |

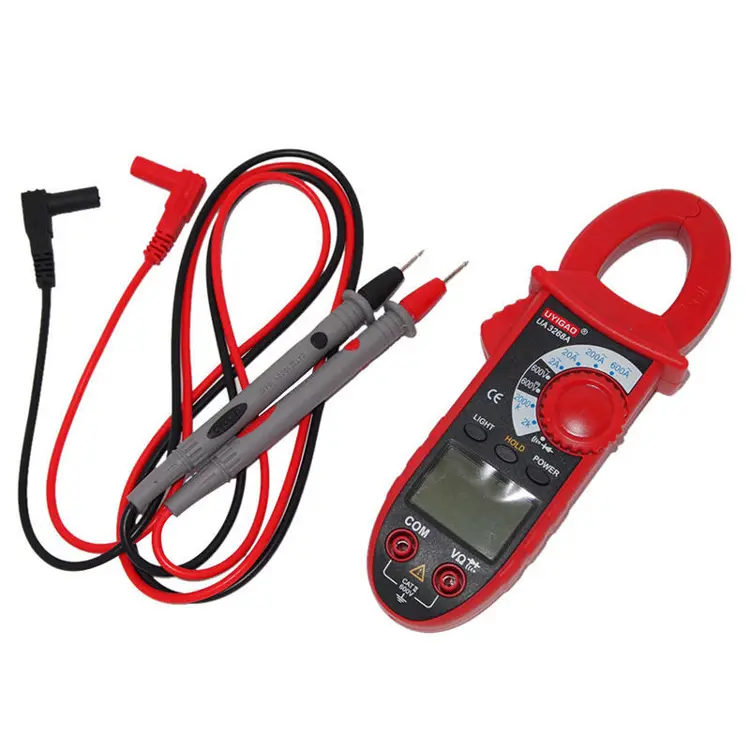

| Standard accessories | Test leads, battery, AAA 1.5V battery | |

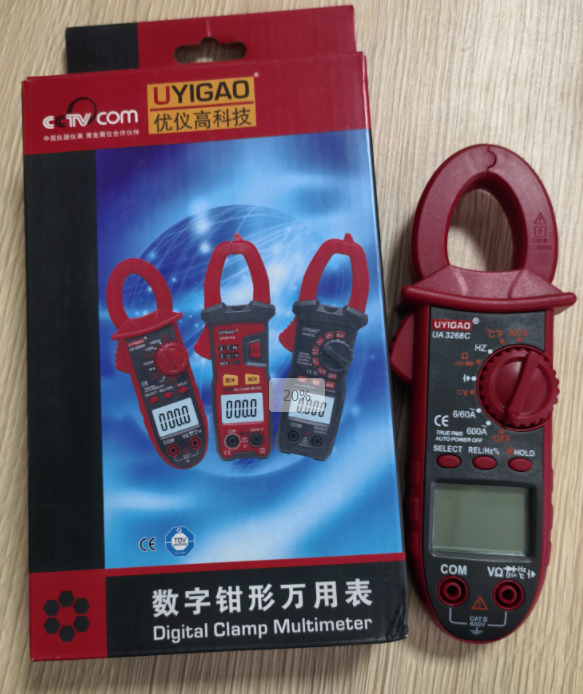

| Standard packing | Color box, manuals |
